Trying to figure out how many gallons of transmission fluid your 2017 GMC Yukon 5.3L SLT XL takes is a lot harder than it should be, because the answer changes with 2WD versus 4WD and whether you’re doing a simple pan drain-and-fill or a full replacement. Get it wrong, and you can end up underfilled, overfilled, or using the wrong ATF.
For a 2017 Yukon with a 6L80/6L90 family automatic, plan on Dexron VI and a procedure that checks level at operating temperature, not cold. We’ll cover exact quarts and gallons for pan drain versus total capacity, plus step-by-step fill and verification so you can do it right in your driveway.
2017 GMC Yukon 5.3 SLT XL transmission fluid capacity depends on drivetrain (2WD vs 4WD) and whether you do a pan drain-and-fill or a full system replacement. Use Dexron VI and set the level with the engine running at the specified temperature per the service manual. Exact quarts and gallons vary by configuration.

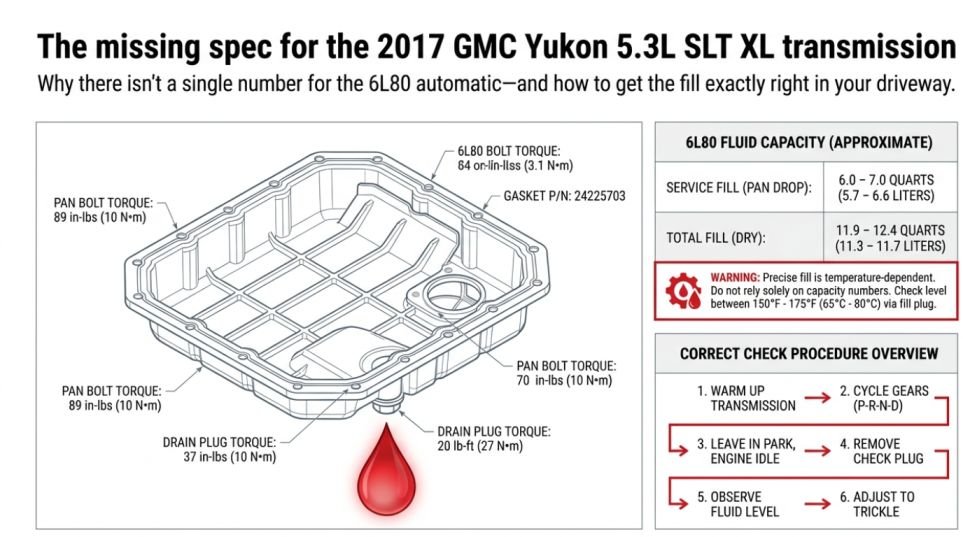

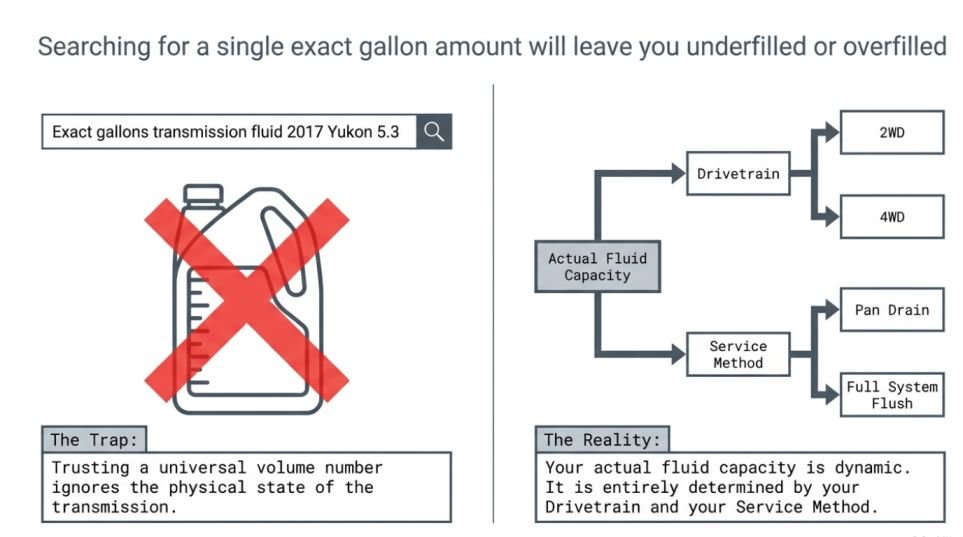

How Many Gallons Of Transmission Fluid Does A 2017 Gmc Yukon 5.3 Slt Xl Hold
For a 2017 GMC Yukon 5.3L SLT XL, the transmission fluid quantity depends on whether you mean the pan’s drain amount or the total fill for the whole transmission and torque converter. A typical service drain-and-fill for the 6-speed automatic (Hydra-Matic) is usually in the ballpark of about 6 to 8 quarts (roughly 1.5 to 2.0 gallons), while a complete “dry-to-full” fill is much higher because it includes the converter.
Because exact capacity can vary by transmission model code, drivetrain (2WD versus 4WD), and whether the fluid is measured by pan drain or full system fill, the safest way to be precise is to match the fluid procedure to what you’re doing: pan drain, multiple drain-and-fills, or a full flush. The big takeaway is that the number changes when you change the service method.
Pan Capacity Vs Total System Capacity (Why The Numbers Differ)
The pan drain amount is only what’s sitting in the pan and accessible passages. The torque converter and internal circuits hold additional fluid, so the “total fill” is often closer to what you can expect from a full-fill service (or a drain-and-fill repeated until level stabilizes).
For DIY work, keep your expectations grounded in what you physically remove. Pan service is usually measured in quarts pulled during drain, while total fill requires a level-check procedure across the correct temperature window.
| Service type | What’s actually being measured | Practical capacity ballpark for planning |
|---|---|---|
| Pan drain and re-fill | Fluid removed from the pan | About 6 to 8 quarts (approx. 1.5 to 2.0 gallons) |
| Total system fill (converter included) | Fluid required to reach correct operating level across the system | Higher than a pan drain, often requiring substantially more than the drain amount |
2wd Versus 4wd And What Changes
On the Yukon, 2WD and 4WD configurations can use similar core transmission hardware, but the overall fluid fill guidance can differ because of how the drivetrain is packaged and which fluid level procedure the service information calls for. The transmission code (the sticker or build information in the vehicle) is what ultimately determines the exact fill quantity.
In practice, plan your fluid volume around the service you’re performing, then confirm with the dipstick or fill plug procedure at the correct temperature. If you’re doing a shop job, ask them to reference the transmission model code and the specified temperature window before you buy fluid.
Mechanic tip: If you’re counting “gallons,” don’t guess from a total capacity number unless you’re doing a true full system fill. A pan drain is a measured amount you can verify from what comes out.
Dexron VI and GM Approval: What To Buy
The 2017 Yukon with the 6L/automatic family commonly uses DEXRON-VI specification ATF and GM-approved equivalents. Mixing brands or using a “meets Dexron” fluid that is not GM-approved can lead to shift feel issues, especially if the fluid is blended or not truly compatible.
When you buy fluid for a drain-and-fill, buy enough to cover what you remove plus a margin for top-off. Buying two containers is cheap insurance, because getting the level correct matters more than hitting an exact ounce.

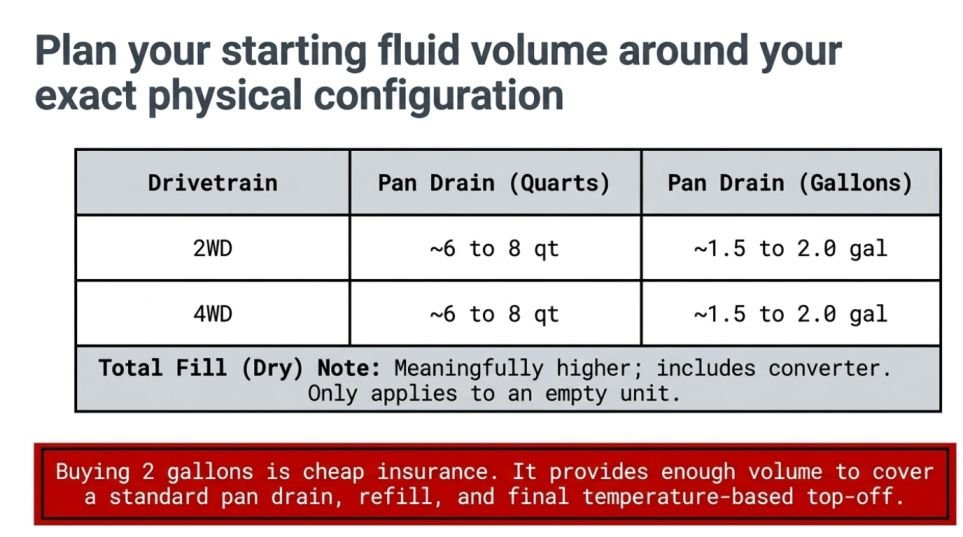

ATF Capacity By Drivetrain
The 2017 GMC Yukon with the 5.3L SLT XL uses a 6L80E 6-speed automatic on both 2WD and 4WD, and the drain-and-fill capacity depends on whether you are filling only the pan or the full transmission system. For most DIY fluid changes, you should plan around the pan capacity in quarts, then expect a larger amount if you are doing a full system refill.
2WD ATF Pan Capacity (Drain Amount)
For a Yukon 2WD, the pan drain is typically the portion you can measure and refill accurately without disturbing cooler lines. Plan on adding roughly 6 to 8 quarts during a standard pan drain and refill. That converts to about 1.5 to 2.0 gallons (since 1 gallon is 4 quarts).
4WD ATF Pan Capacity (Drain Amount)
For a Yukon 4WD, the transmission itself is still a 6L80E in most configurations, so pan-drain amounts usually land very close to the 2WD range. Plan on roughly 6 to 8 quarts for a drain and refill based on pan volume. That is about 1.5 to 2.0 gallons, with final quantity guided by getting the fluid level correct.
| Drivetrain | Pan drain (quarts) | Pan drain (gallons) |
|---|---|---|
| 2WD | ~6 to 8 qt | ~1.5 to 2.0 gal |
| 4WD | ~6 to 8 qt | ~1.5 to 2.0 gal |
ATF spec note: this generation commonly calls for Dexron VI. Always confirm the exact spec for your VIN and perform the level check at the required fluid temperature.
Total system capacity is always higher than pan drain because fluid also lives in the converter and cooler circuits. Since the full-refill method and whether you use a pump or drain procedure can change the exact number, treat the pan-drain gallons above as your most reliable planning value for a typical DIY service.
Practical takeaway: if you are buying jugs for a simple drain and refill, about 2 gallons worth of Dexron VI is usually enough to cover the pan drain and allow for topping to the correct level. Expect the “full system” amount to be meaningfully more, which is why the next section should be your reference if you are aiming for a complete exchange.

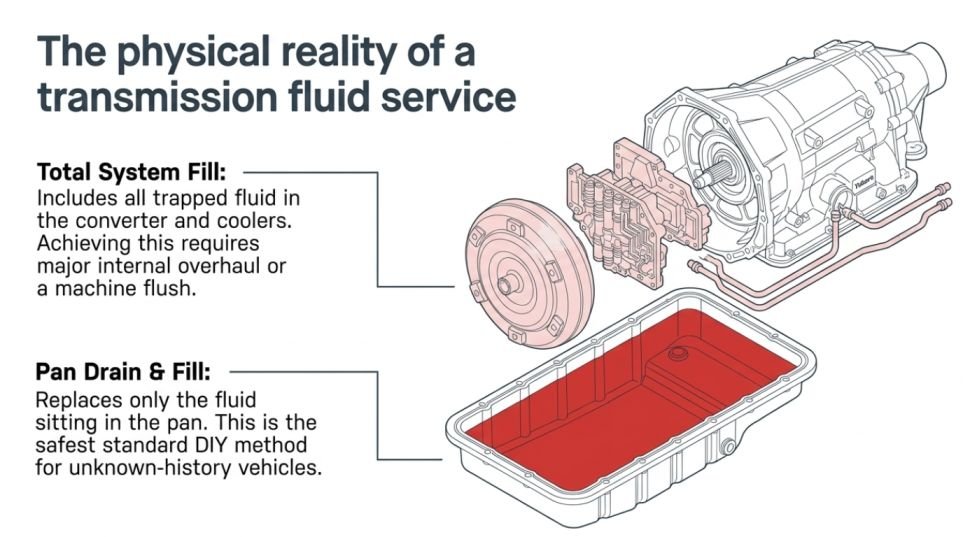

Pan Drain Vs Total Capacity
Transmission service fill amounts differ because “pan drain and fill” only replaces fluid in the pan and passages, while “total system capacity” covers fluid in the converter, cooler lines, and heat exchanger. GM’s published spec, when available, usually tells you the correct fluid type and fill target for the procedure you are performing, not a universal single number.
Where GM Lists Both Figures
GM typically separates information by procedure in the service literature, such as drain-and-fill (often timed by what comes out of the pan) versus a full “dry fill” after major internal work. The dealership workflow also ties the final amount to a temperature-based level check because the transmission pan-to-bore geometry changes the measurable level as fluid warms. That is why you may see different “quarts added” numbers depending on whether you measure what drains out or measure to the fill port height after warming.
In practice for a 2017 GMC Yukon SLT (5.3L, 6L80-style automatic), the shop fill spec is usually treated as a method-based target: either “replace what drains” plus verify with the level procedure, or “fill to the level check point” and then top up. If you only use a volume number from the internet, you can end up slightly low or slightly high, especially if the previous service used a different method.
Why Service Type Changes The Capacity
Pan drain-and-fill capacity is smaller because it leaves a big portion of the fluid in the converter and cooler circuit. Total system capacity is larger because it includes that trapped fluid volume plus any fluid that only moves during converter engagement and line flow.
4WD versions add cooler plumbing volume and heat exchanger routing complexity, but the biggest swing still comes from service method. A slow exchange (or a multiple-step partial exchange) can move more fluid than a single pan service, yet it still usually does not equal a true dry fill replacement of every internal circuit.
| Service type | What the capacity number represents | How to interpret it |
|---|---|---|
| Pan drain and fill | Fluid you remove from the pan plus what you add back | Use this with the OEM level procedure so you do not overfill based on volume alone |
| Total system capacity / dry fill | All internal and external fluid volumes | Only applies if the unit is empty (for example, after an overhaul) and you follow the exact fill procedure |
| Multiple-step exchange | Progressive replacement, closer to full than one drain | Expect a larger total fluid use than a single pan service, but still verify level at temperature |
Mechanic’s tip: When you see two different “fill” amounts for the same transmission, assume one is “drain amount added” and the other is “system capacity for empty fill.” The correct one for you depends on the procedure your shop or DIY plan is using.

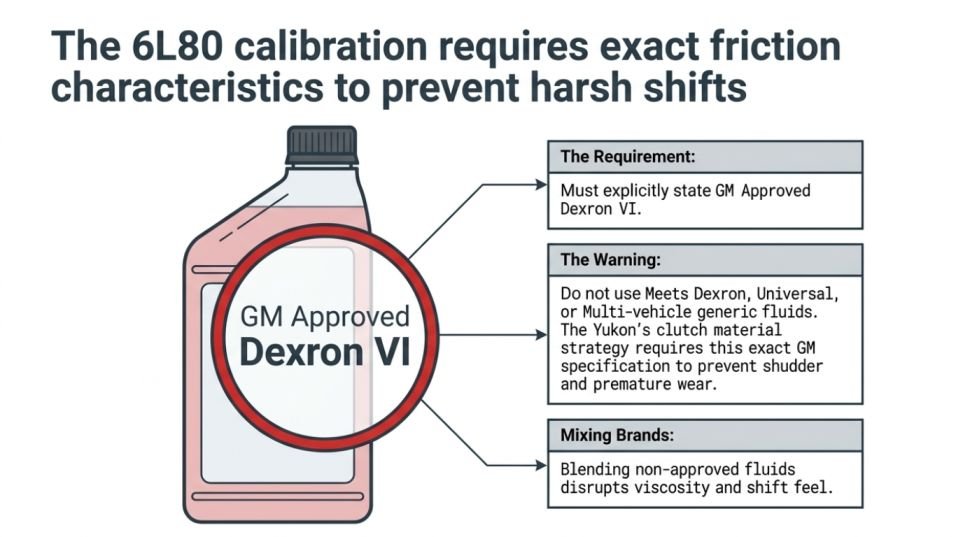

Dexron VI and GM approvals
2017 GMC Yukon transmissions call for GM Dexron VI ATF. The “right fluid” is the part of the job that prevents shudder, harsh shifts, and premature wear, so match the GM spec even when other Dexron VI bottles look identical.
Gm Dexron Vi Spec And What To Look For
On the bottle, you want wording like GM Dexron VI or meets GM specification for Dexron VI. Many aftermarket ATFs meet Dexron VI, but GM approvals are what matter for warranty-level correctness and long-term shift quality in the 6L80 family.
For the 6L80/6L90 applications in the 2017 Yukon, the fluid requirement is tied to the transmission calibration and clutch material strategy. Using a different ATF (even “Dexron III,” “Universal,” or “multi-vehicle” types) can change friction characteristics enough to cause drivability complaints.
GM Approval And Parts That Matter
GM-approved ATF is commonly sold through GM Genuine Parts or retail channels under packaging that states it meets GM Dexron VI. Exact retail packaging varies by market, so the practical way to stay correct is to buy a product that explicitly lists GM Dexron VI on the container.
| Item | What to verify on the label | Why it matters |
|---|---|---|
| Dexron VI ATF (GM approved) | GM Dexron VI or meets GM Dexron VI specification | Matches friction and viscosity requirements used by 6L80/6L90 |
| Aftermarket “Dexron VI” bottle | Clear statement that it meets GM Dexron VI | Reduces risk of shift quality problems from mismatch |
Practical tip: If the bottle only says “Dexron VI” without mentioning GM or “meets GM Dexron VI,” don’t gamble. Pick a brand that prints the GM Dexron VI requirement on the label.
GM Genuine Parts ATF part numbers can vary by container size and by distributor update. For the exact GM part number that matches your Yukon’s market and packaging size, cross-check the label requirement against your VIN in GM parts lookup at your dealer or parts counter.

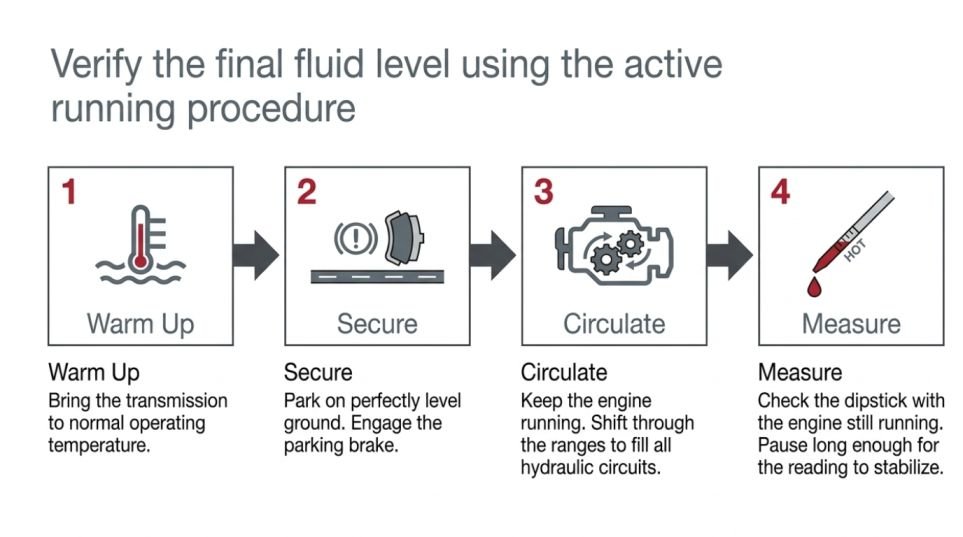

Fill Procedure Basics
The 2017 GMC Yukon 5.3L ATF level is checked with the transmission at operating temperature, then adjusted to the dipstick’s proper mark. Because the level changes as the fluid heats and circulates, a cold check will usually read low and can lead to an overfill if you top it off based on a driveway measurement.
Warm Transmission Requirements And Conditions
Warm ATF is critical because viscosity drops and fluid expands as temperature rises. Aim for a normal operating temperature range before checking, then keep the engine running during the level check so the fluid is at the correct flow state.
Parking brake on and the vehicle on level ground are just as important because the level is sensitive to angle. Even a slight slope can move the fluid enough to make the dipstick reading misleading.
| Condition | Why it matters | Typical shop practice |
|---|---|---|
| Transmission warm | ATF expands and flows differently at temperature | Check after reaching operating temps, then keep running |
| Parking brake engaged | Prevents rolling while checking | Always set before shifting through ranges |
| Level ground | Prevents false low or high readings | Drive onto flat surface if possible |
| Correct range selection | Fluid level varies by gear hydraulic circuit | Follow the OEM range callout (usually park or specific check state) |

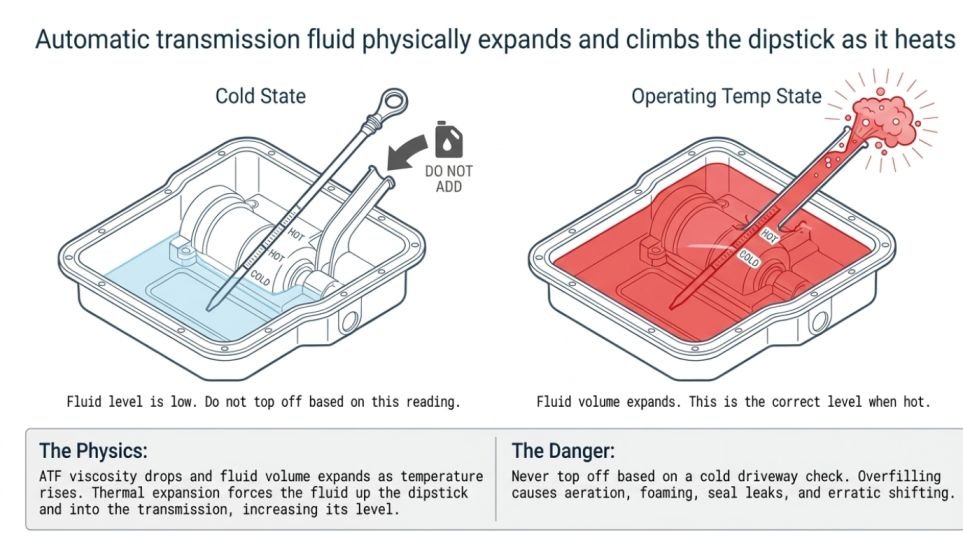

Dipstick Vs Temperature-based Checks
Many GMT-based GM trucks use a dipstick-style level check, but the exact “correct” reading depends on temperature. The dipstick has marks for different conditions in some designs, while others require reading at a single target temperature, so you must follow the procedure in the service information for your exact transmission.
For example, dipstick checks often include shifting through the gears to fill the circuits before returning to the check state. Temperature-based methods use a scan tool to confirm ATF temp, then you verify the level within a narrow window, which is more repeatable for shops and DIY setups with the right equipment.
Common DIY mistake: checking ATF right after a cold start. The reading can look low, then you overfill once the fluid warms up, which can cause foaming, seal leaks, and harsh shifting.
For the most accurate level, follow the same routine every time: warm up, secure the vehicle, run the engine during measurement, and pause long enough for the dipstick reading to stabilize after inserting and pulling it. This is also the point where you catch a bad pan gasket leak, a valve body seep, or aerated fluid that can make the dipstick reading erratic.
Pan Drain-and-fill Steps
For a 2017 GMC Yukon 5.3L SLT XL with the 6-speed automatic, a pan drain-and-fill typically replaces about 6 to 8 quarts (1.5 to 2.0 gallons) of ATF, depending on how much fluid you drain and how long it drips after the filter comes off. This is not the full transmission capacity, which is much higher because the torque converter and internal passages retain extra fluid.
Use Dexron VI ATF and plan on getting fluid within spec first, then topping to the correct level once the transmission is at operating temperature. If your truck has 4WD hardware, the pan location and underbody access can slow the job down, but the fill procedure is the same.

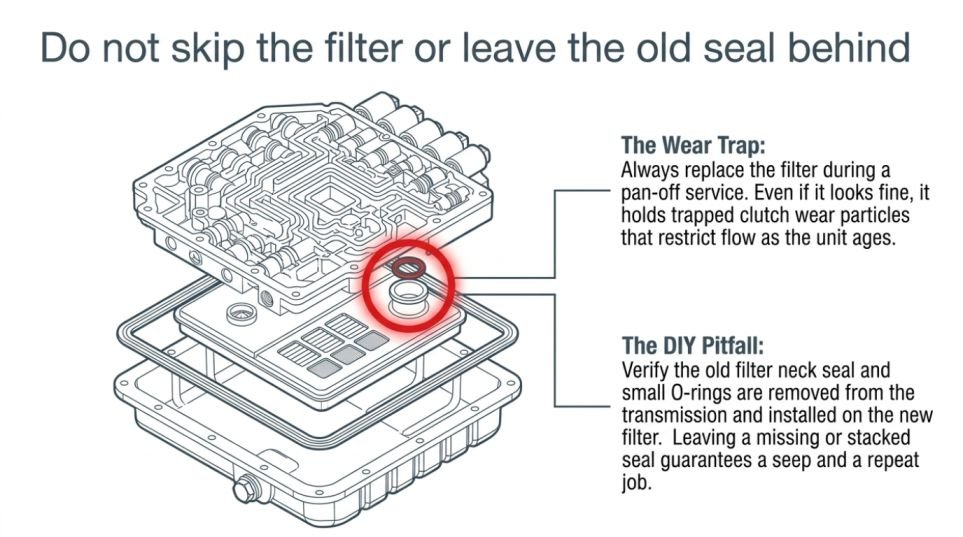

Filter Replacement Note
The correct service move during a pan drain-and-fill is to replace the transmission filter when you have the pan off. Even if the filter “looks fine,” it has caught clutch wear particles, and it can restrict flow as it ages.
Many aftermarket filters include a filter seal and pan gasket, but kit contents vary. Before you start, compare your replacement kit against what came off the truck (filter neck seal, pan gasket thickness, and any small O-rings), because a missing seal can lead to a seep and a repeat job.
| What you’re doing | Fluid amount you’re replacing | What to do next |
|---|---|---|
| Pan drain-and-fill | About 6 to 8 quarts (1.5 to 2.0 gallons) | Confirm level at operating temperature with the proper check method |
Quick sanity check: If you end up adding far more than 8 quarts during a pan service, stop and verify you did not miss an internal drain point, a mis-seated pan/filter, or an incorrect level-check method.
Full Flush Steps
For the 2017 GMC Yukon 5.3L SLT XL, a true full flush exchanges nearly all ATF in the transmission and cooler circuits, so you should plan for more fluid than a pan drain-and-fill. Since online capacity numbers vary by drivetrain configuration, the safest approach is to treat the service total as “exchange volume” plus confirm the final level with the OEM-style check procedure using the correct Dexron VI ATF.
Full Flush Vs Drain-and-fill (What Changes In The Real World)
A drain-and-fill replaces only the fluid that is in the pan (and some amount in the torque converter depending on how the level stabilizes), so the exchange is partial. A full flush pushes new Dexron VI through the transmission and cooler circuit, which can improve fluid quality faster, but it also increases the chance of disturbing debris if the transmission has old varnish and sludge.
Trade-off: A full flush is more “complete” but less forgiving. If the Yukon has unknown service history, high mileage, or delayed engagement symptoms, many shops will recommend a drain-and-fill first to see how the transmission reacts before doing a larger exchange.
Cautions and best practices
If you want the best DIY outcome, do a drain-and-fill first when the service history is questionable. A flush is most appropriate when fluid condition is known, temperature and level checks are reliable, and the transmission shifts normally.

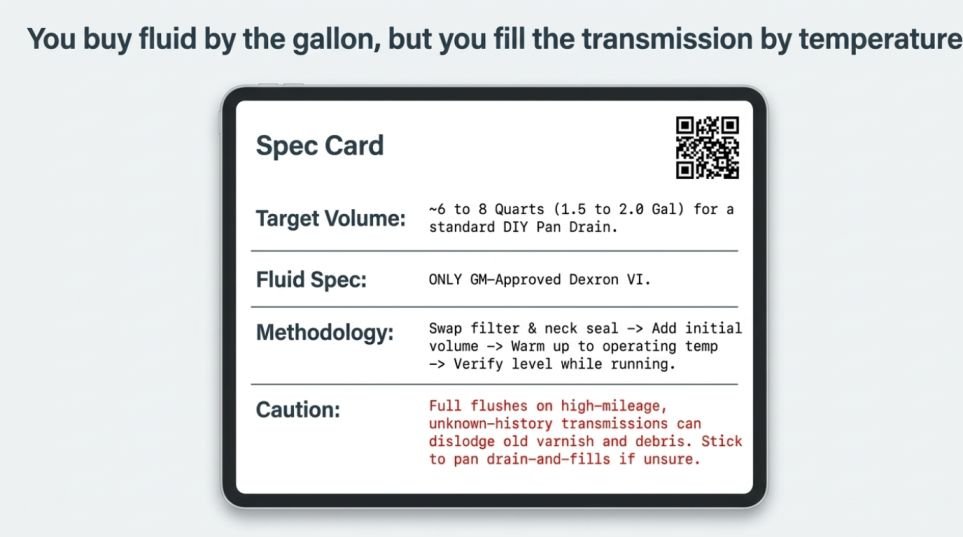

Quick Summary
For a 2017 GMC Yukon 5.3L SLT XL with the 6L80/6L90 automatic family, the amount of transmission fluid you need depends on whether you are doing a pan drain and fill or a full dry-to-full fill, and it can also differ by drivetrain setup (2WD versus 4WD). Plan on Dexron VI, and set the level by checking at operating temperature with the engine running, not when cold. A typical pan drain-and-fill is usually about 6 to 8 quarts, roughly 1.5 to 2.0 gallons.
That 6 to 8 quart number is not total system capacity, because the torque converter and internal circuits hold additional fluid. The article explains that total fill requires a temperature-correct level procedure across the system, and it can take substantially more fluid than what comes out during a single drain. For DIY work, count how many quarts you remove, refill that amount, then fine-tune slowly to the correct check point. The most important takeaway is to match the fluid quantity to your exact service method and temperature check procedure.
| Service type | What it measures | Planning ballpark from article |
|---|---|---|
| Pan drain and re-fill | Fluid removed from pan and passages | About 6 to 8 quarts, roughly 1.5 to 2.0 gallons |
| Total system fill (converter included) | Fluid to reach correct operating level across converter and system | Higher than pan drain; amount varies by configuration |
Frequently Asked Questions
How Many Gallons Of Transmission Fluid Does A 2017 Gmc Yukon 5.3 Slt Xl Hold?
Most service filling for this Yukon’s automatic transmission ends up requiring roughly 6 to 8 quarts (about 1.5 to 2 gallons) after a normal drain and refill. Exact capacity can vary by whether it’s a drain-and-fill or a full fluid exchange, and by build specs, so your best check is the dipstick level procedure for your transmission.
How Many Quarts Is A Drain And Refill For The 2017 Yukon 5.3 Slt Xl?
A drain and refill is typically the portion of fluid you can remove without opening the cooler lines, and it’s commonly around 6 to 8 quarts for this GM 6L80-style application. Because units differ, you still confirm the correct amount using the dipstick and temperature/level procedure, not just a guessed volume.
If I Do A Full Transmission Fluid Exchange, How Many Gallons Will I Need For A 2017 Yukon?
A full exchange usually uses more fluid than a drain and refill, often landing around 2 to 3 additional gallons worth of total fluid compared to what drains out. Since exchange machines flush different proportions depending on the system, you should plan conservatively and still verify the final level after the service.
What’s The Quickest Way To Confirm The Correct Transmission Fluid Level On A 2017 Yukon 5.3 Slt Xl?
Use the transmission dipstick if your setup has one, and follow the manual’s “check at temp” guidance, because the level can change a lot as the fluid warms up.
In practice, that means checking after a short drive and ensuring you’re on level ground, then adjusting with small top-ups until the fluid is in the correct range.
Can I Safely Add Extra Quarts If I Don’t Know The Exact Gallons For My 2017 Yukon?
You can top it off, but don’t overfill. Overfilling can cause foaming, aeration, and shift issues, so add in small amounts, recheck the level at the right temperature, and stop once you’re in spec.
