Standing over the open hood of a 2008 F-150 with the 5.4L Triton V8, you need one number before you open the first jug. The 2008 Ford F-150 5.4L Triton takes 7.0 quarts (6.6 liters) of SAE 5W-20 oil when you change the oil and filter. Use a Motorcraft FL-820-S filter, then confirm the final level on the dipstick.
If you have seen 5.5 quarts, 6 quarts, or 7.7 quarts on other sites, those figures belong to different engines (the 4.6L, older 2-valve 5.4L trucks, or the later 5.0L). This page gives the right number for your truck, the oil type, the filter, and the exact fill-and-check steps.
2008 Ford F-150 5.4 Triton Oil Capacity At A Glance
The 5.4L in a 2008 F-150 is the 3-valve Triton V8. Its service-fill capacity is 7.0 quarts (6.6 liters), including the oil filter. Your 2008 F-150 5.4 oil capacity, oil type, and filter in one table:
| Spec | 2008 F-150 5.4L Triton V8 | Practical note |
|---|---|---|
| Oil capacity (with filter) | 7.0 qt (6.6 L) | Standard oil and filter change |
| Oil viscosity | SAE 5W-20 | Synthetic blend or full synthetic that meets Ford spec WSS-M2C930-A |
| Oil filter | Motorcraft FL-820-S (spin-on) | Has an anti-drainback valve for cleaner cold starts |
| Jugs to buy | One 5-qt jug plus two 1-qt bottles | Keep an extra quart for top-offs |
2008 Ford F-150 5.4L Triton V8 engine oil capacity varies by model year and engine, which is why generic numbers online disagree. The table above is for the 2008 truck specifically. Always verify with the dipstick after filling, and check the owner’s manual if your truck has had an engine swap.
Oil Filter And “How Much” Difference
The 7.0-quart figure includes the oil that fills the new filter. If you drain the pan and reuse the old filter, you will add a bit less than 7 quarts. Because you rarely drain every ounce, the safest method is to pour in about 6.5 quarts, check the dipstick, and add the rest in small amounts. If you are weighing filter brands against the Motorcraft FL-820-S, this look at oil filter efficiency explains what to compare.
Rule of thumb: pour in about 6.5 quarts, wait a few minutes for the oil to settle, then bring the level to the top of the dipstick’s crosshatch. Overfilling is harder to fix than being slightly low at first.
What Oil Does A 2008 F-150 5.4 Take?
Ford specifies SAE 5W-20 for the 2008 F-150 5.4L. Ford’s own Motorcraft 5W-20 synthetic blend is the usual choice, and a full synthetic 5W-20 that carries the Ford WSS-M2C930-A specification is also fine. The 3-valve 5.4L uses oil pressure to run its variable cam timing, so viscosity matters more than brand.
Some owners switch to 5W-30 on high-mileage trucks to quiet valvetrain noise. That is a personal choice, not Ford’s recommendation. If the truck is still under any extended coverage or you want to stay with the manufacturer’s spec, stay with 5W-20.
| Oil choice | Fit for a 2008 5.4L? | Why |
|---|---|---|
| 5W-20 synthetic blend (Motorcraft) | Factory choice | What Ford specified and tested for this engine |
| 5W-20 full synthetic | Good | Same viscosity, better cold flow and heat resistance |
| 5W-30 | Not the spec | Some owners use it on worn engines, but it can slow variable cam timing response |
| 10W-30 or heavier | Avoid | Reaches the overhead cams more slowly on cold starts |
How The 5.4L Triton Oil System Works
Engine oil capacity is the total volume the system holds after a normal drain and refill: the pan, the oil passages, and the filter. The oil pump draws from the pan, pushes oil through the filter, and sends it up through galleries to the bearings, the cam phasers, and the valvetrain. The 3-valve 5.4L also relies on that oil pressure to move its variable cam timing, which is another reason to hold the correct level and viscosity.
After shutoff, oil drains back down to the pan. That is why the dipstick reading depends on how long the truck has sat and whether it is parked level.
What Changes Your Dipstick Reading
| Oil-check condition | What you see on the dipstick | Why it happens |
|---|---|---|
| Checked immediately after driving | Often reads low | Oil is still draining back from the heads and passages. |
| Checked after a 5 to 10 minute soak on level ground | Consistent reading | Most oil has returned to the pan. |
| Filter just replaced | May need a small top-off | Oil fills the new filter after the first start, then settles. |
Shop tip: After an oil change, start the engine, check for leaks, shut it off, wait a few minutes for drainage, then re-check the dipstick. That sequence prevents overfilling, which can aerate oil and hurt lubrication.
Key Benefits Of Using The Right Amount And Grade
Knowing the exact oil fill capacity for a 2008 Ford F-150 5.4L Triton V8 keeps you from underfilling or overfilling. Correct oil level keeps oil pressure stable on cold starts, supports the variable cam timing system, and prevents the crankcase from whipping oil into foam.
One practical bonus: you buy the right amount of oil the first time. Seven quarts means one 5-quart jug plus two quarts, so there is no mid-job trip to the store.
| Service condition | Why it changes | What you should check |
|---|---|---|
| Oil change with new filter | New filter holds additional oil | Plan on about 7.0 qt; confirm on dipstick |
| Oil change without filter | Old filter stays full of oil | Add a little less, about 6.5 qt, then adjust by dipstick |
| Cold vs warm level check | Oil drains back differently with temperature | Use the same routine every time: level ground, 5+ minutes after shutoff |
Insider mechanic habit: measure the oil level after the truck has sat long enough for oil to drain back, then top up in small increments. Overfilling is harder to fix than underfilling without another drain.

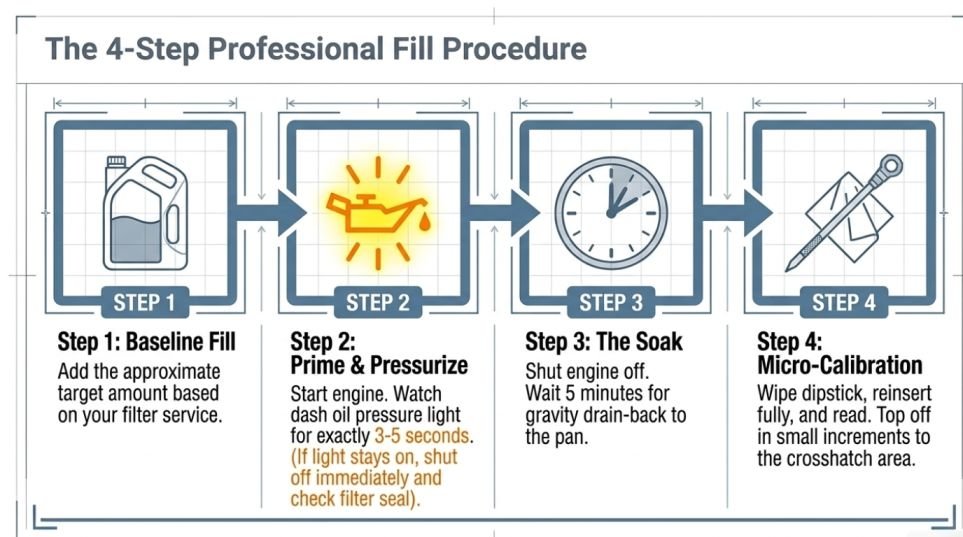

How To Change The Oil On A 2008 F-150 5.4 Triton: Step-by-step Guide
You need 7 quarts of 5W-20, a Motorcraft FL-820-S filter, a drain pan, a filter wrench, and a funnel. Warm the engine for a couple of minutes first so the oil drains better, then shut it off.
- Park level and set the parking brake. Safely support the front of the truck if you need extra room to work.
- Drain the old oil. Remove the drain plug and let it drain for several minutes.
- Replace the filter. Spin off the old FL-820-S, wipe the mounting surface, and lightly oil the new filter’s gasket. Hand-tighten it. Confirm the old gasket did not stick to the block.
- Reinstall the drain plug with a clean washer or gasket if yours is damaged, and tighten it to spec.
- Add about 6.5 quarts of 5W-20 through the filler cap.
- Start the engine and watch the oil pressure light. It should go out within a few seconds. Check under the truck for leaks.
- Shut off, wait 5 to 10 minutes, then wipe the dipstick, reinsert it fully, and read the level.
- Top off in small amounts until the level reaches the crosshatch’s upper range, not above it. Most trucks end up at about 7.0 quarts total.
| Service | Typical oil added (quarts) | Final setting method |
|---|---|---|
| Drain + new oil filter | ~7.0 (6.6 L) | Add 6.5, then top to the dipstick crosshatch |
| Drain only (old filter stays) | ~6.5 (6.2 L) | Add 6, then top to the dipstick crosshatch |
Expert tip: After any oil change, watch the dash oil pressure light at first start. If it stays on longer than a few seconds, shut the engine off and recheck the filter seal and oil level before driving.
For routine maintenance, follow the interval in your owner’s manual. Many owners change oil about every 5,000 miles, and sooner for severe service such as towing, stop-and-go driving, lots of idling, or dusty roads.
Common Mistakes To Avoid
Overfilling or underfilling is the fastest way to create a new problem. Many owners pour in a number from a random website, skip the dipstick, and assume it will work itself out. Always verify the level after the oil has drained back.
Wrong Capacity Numbers From Other Engines
The most common error is using the wrong engine’s number. Capacity depends on the model year and engine, so check the table below before trusting a figure you find online.
| Truck and engine | Oil capacity | Oil type |
|---|---|---|
| 1997 to 2003 F-150, 5.4L 2-valve | ~6.0 qt (5.7 L) | 5W-20 (earlier trucks 5W-30) |
| 2004 to 2010 F-150, 5.4L 3-valve (your 2008) | 7.0 qt (6.6 L) | 5W-20 |
| 2011 and later F-150, 5.0L V8 | ~7.7 qt (7.3 L) | 5W-20 |
Treat the older-truck rows as a quick reference and confirm in the manual for your own vehicle.
| Owner shortcut | What it causes | Better move |
|---|---|---|
| Pour in a guessed quarts number | Overfill, aeration, leaks | Add about 6.5 qt, then top off in small amounts while watching the dipstick |
| Skip the dipstick after adding oil | Low oil pressure risk | Verify the level every time, even if you bought the exact amount |
| Reuse an old filter and add the full 7 qt | Overfill and mess | Match the oil amount to the service you actually performed |
Oil Type And Grade Errors That Hurt Performance
Picking whatever bottle is on sale is another money-waster. Viscosity affects how fast oil pressure builds on a cold start, and the 3-valve 5.4L uses that pressure for its cam phasers. Stick with 5W-20 and confirm the specification on the bottle before pouring.
If you see foam on the dipstick, a sudden drop in level, or metal in the oil, stop and get the truck inspected. Those clues can point to a deeper lubrication or internal issue.
Professional rule: If the dipstick reads above the upper mark after a change, drain back to level. Overfilled engines can push oil out through vents and seals, creating leaks that look unrelated to the oil change.
Tips For Success
For the 2008 F-150 5.4L Triton V8, oil fill depends on the engine variant and whether you include the oil filter during an oil change. Use 7.0 quarts as your target when the filter is replaced, then verify with the dipstick.
Treat the change as a two-step process: fill to a safe baseline, then top off to the correct dipstick range. This keeps you from underfilling or overfilling.
How To Check Oil Level By Dipstick (The Practical Way)
Park level, shut the engine off, and wait 5 to 10 minutes. Pull the dipstick, wipe it clean, push it all the way back in, and pull it again. The oil should sit within the crosshatched area at the end. Use the same routine every time so readings are repeatable.
| Service situation | What to do | Why it matters |
|---|---|---|
| New oil + new filter | Add about 6.5 qt, then top off using the dipstick | Filter capacity changes the final level |
| Oil top-off only | Add a quarter to half a quart at a time until you reach the crosshatch | Overfilling can cause aeration |
| Unknown service history | Check the dipstick first, then add oil in small steps | The previous owner may have over- or underfilled |
Professional tip: If the dipstick reads high after an oil change, drain a small amount rather than hoping it settles. Overfilled oil can foam and reduce lubrication quality under load.
Maintenance Schedule And What To Watch For
Use a shorter interval if you do frequent cold starts, short trips, towing, or dusty driving. The 5.4L Triton can live a long life, but oil that gets diluted or contaminated loses protection faster than the calendar suggests.
Watch for oil level dropping between changes and check for leaks around the oil pan, filter area, and valve cover gaskets. Persistent level loss or unusual sludge needs inspection, because repeated oil loss usually points to a mechanical issue.
Real Examples
A typical owner changes the oil and filter on a 2008 F-150 5.4L, pours in about 6.5 quarts, runs the engine for a minute, shuts it off, and waits 5 to 10 minutes. The dipstick usually then calls for another half quart or so, landing at around 7 quarts total. Dealer service receipts for these trucks commonly list 7 quarts for the same reason.
An owner who drains the pan but keeps the old filter will add a bit less, around 6.5 quarts, because the filter still holds oil. The final amount is decided by the dipstick, not by the jug.
Real-world Oil Change Check Patterns
A common mistake on this engine is checking the dipstick too soon after shutting off. Oil needs time to drain back, or you may add too much. Another is letting the old filter gasket stick to the block, which causes a slow leak with the new filter on top.
Mechanic’s note: If you overfill, remove a little with a pump through the dipstick tube. Running overfilled on a 5.4 Triton can lead to leaks or smoky startup.
| Scenario | Typical oil-added amount | Dipstick expectation |
|---|---|---|
| Oil + new oil filter | About 7 quarts (6.6 L) | At the crosshatch after proper wait time |
| Oil drain only (filter left in place) | About 6.5 quarts | May read low; top off with small additions |
| Overfill correction | Remove oil in small amounts | Target the upper part of the crosshatch |
Quick Summary
The 2008 Ford F-150 with the 5.4L Triton V8 takes 7.0 quarts (6.6 liters) of 5W-20 oil with a filter change, using a Motorcraft FL-820-S filter. If you keep the old filter, expect to add a little less.
Pour in about 6.5 quarts, run the engine briefly, shut it off, wait 5 to 10 minutes on level ground, then read the dipstick and top off in small amounts to the full range.
| Item | Spec | What to do |
|---|---|---|
| Oil capacity with filter | 7.0 qt (6.6 L) | Add about 6.5 qt, settle, then confirm “FULL” on the dipstick |
| Oil type | SAE 5W-20 | Meets Ford WSS-M2C930-A |
| Filter | Motorcraft FL-820-S | Replace at every oil change |
Frequently Asked Questions
What Is The 2008 Ford F-150 5.4 Triton Oil Capacity?
The 2008 F-150 5.4L Triton V8 takes 7.0 quarts (6.6 liters) with an oil and filter change. Verify the final level with the dipstick.
How Many Quarts Of Oil Does A 5.4 Triton Take?
It depends on the year. The 3-valve 5.4L in 2004 to 2010 F-150s, including your 2008, takes 7.0 quarts. Older 2-valve 5.4L trucks take about 6.0 quarts. Check your owner’s manual if you are unsure which engine you have.
What Oil Type Does A 2008 F-150 5.4 Use?
Ford specifies SAE 5W-20. Use a synthetic blend or full synthetic 5W-20 that meets Ford spec WSS-M2C930-A.
What Oil Filter Does A 2008 F-150 5.4 Use?
The Motorcraft FL-820-S is the factory-spec spin-on filter for this engine.
How Much Oil Do I Add To A 2008 F-150 5.4 Triton After Draining The Oil?
With a new filter, add about 6.5 quarts, run the engine briefly, shut it off, wait a few minutes, and top off to the full mark. Most trucks end up at about 7 quarts total. If you reuse the filter, expect to add a little less.
Does The Oil Capacity Change On A 2008 F-150 5.4 Triton When Replacing The Oil Filter?
Yes. A new filter holds additional oil, so the 7.0-quart figure applies when the filter is replaced. Confirm the final level on the dipstick.
What’s The Correct Way To Check Oil Level After An Oil Change On A 2008 F-150 5.4 Triton?
Check on a level surface after the engine has sat for 5 to 10 minutes so the oil drains back. Wipe the dipstick, reinsert it fully, and read the level. Add small amounts until it reaches the full mark, not above it.
Can Adding Too Much Oil Damage A 2008 F-150 5.4 Triton?
Yes. A level that is too high can cause excess crankcase pressure and aerated oil, which is hard on the engine, bearings, and oil control system. Correct an overfill by draining some oil and rechecking the dipstick.
How Much Oil Should A 2008 F-150 5.4 Triton Use Between Oil Changes If I Keep It Topped Off?
Oil use varies by engine condition, driving, and maintenance, so measure with the dipstick at the same interval each time. Consistently losing more than a small amount between changes is a reason to check for leaks, consumption, and the PCV system rather than simply adding oil.
