Harbor Freight Winches

If you want the short version: the BADLAND ZXR 9,500 lb. winch is the winch most truck and SUV owners should buy at Harbor Freight, and it costs $329.99. It handles most half-ton and three-quarter-ton recovery work, uses a wired dash switch instead of a pricier wireless remote, and comes with wire rope you can swap for synthetic later.

Key takeaways

• Harbor Freight sells winches under two house brands: Badland (electric) and Haul-Master (manual). There’s no Warn, Smittybilt, or other outside brand on the shelf.
• Truck/SUV electric winches range from $329.99 (ZXR 9,500 lb.) to $599.99 (APEX 12,000 lb.).
• UTV and ATV winches start at $89.99 for a 2,500 lb. unit and top out around $269.99 for the APEX 5,500 lb. long-drum.
• Hand winches and cable pullers run $22.99 to $39.99, no battery required.
• A 12,000 lb. winch needs a mount rated for that load and a deep-cycle battery of at least 650 CCA.
• Inside Track Club members regularly see 20-40% off individual winches and accessories, so check the current deal before you buy at full price.

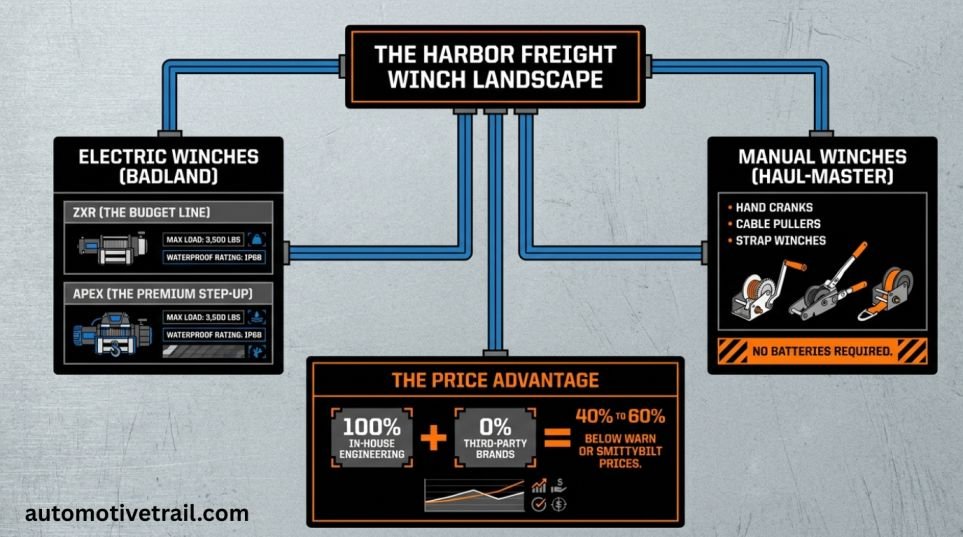

Harbor Freight winches: what’s actually on the shelf right now

Harbor Freight splits its winch catalog into three buckets: electric winches, hand winches, and accessories. Electric winches cover truck/SUV, UTV, ATV, and marine applications. Hand winches cover cable pullers and strap winches for lighter jobs where you don’t want to run a motor off your battery.

Two brand names do all the work here. ZXR is the budget line inside Badland’s electric winch family. APEX is the step-up line with better sealing, a wireless remote, and heavier-duty internals. Haul-Master covers every manual winch and puller in the store.

That’s it. No licensed third-party brands, no Warn-badged product, nothing imported under a different name. Everything is Harbor Freight’s own engineering and sourcing, which is exactly why the prices sit 40-60% below comparable Warn or Smittybilt units.

As of this writing, the full winch category runs about 50 individual SKUs once you count accessories like remotes, mounts, ropes, and straps. The core decision tree is simple: figure out what you’re mounting the winch to (truck, UTV, trailer, boat), then match the capacity to your vehicle’s weight.

Truck and SUV winches: Badland ZXR vs APEX

This is where most buyers land, and Harbor Freight sells four models for this use case.

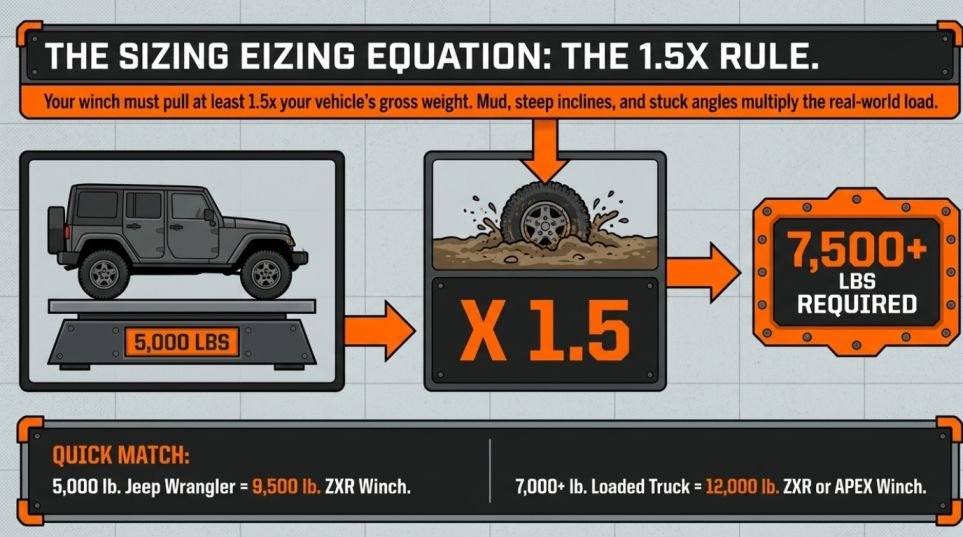

Rule of thumb for capacity: your winch should pull at least 1.5x your vehicle’s gross weight, since mud, an incline, or a stuck angle multiplies the load. A 5,000 lb. Jeep Wrangler is fine with the 9,500 lb. ZXR. A 7,000 lb. loaded truck wants the 12,000 lb. version.

The price jump from ZXR to APEX ($250-270) buys you a wireless remote instead of a wired dash switch, better IP-rated sealing, and Harbor Freight’s higher-tier motor and gearing. If you winch occasionally and don’t mind holding a switch, ZXR does the job for less. If you’re wheeling regularly and want to stand clear of the cable while operating it, APEX earns its price.

UTV and ATV winches: matching pull weight to your machine

Five models cover this category, and pricing scales cleanly with capacity.

• ZXR 2,500 lb. ATV/Utility, wire rope, wireless remote: $89.99 (frequently $69.99 on member deal)
• ZXR 3,500 lb. UTV/Powersport, automatic load-holding brake: $139.99
• ZXR 5,000 lb. UTV/Powersport, automatic load-holding brake: $179.99
• APEX 5,500 lb. UTV short-drum, synthetic rope: $249.99 (often $209.99)
• APEX 5,500 lb. UTV long-drum, synthetic rope: $269.99

The APEX 5,500 lb. long-drum is the flagship of this group. It runs a permanent-magnet motor with hardened-steel planetary gears, carries an IP68/IP69K rating (tested against 1,450 PSI water streams), and includes a freespool clutch plus an aluminum hawse fairlead built to extend synthetic rope life.

For a stock 500-600 lb. side-by-side, the 3,500 lb. ZXR covers normal recovery. If you’re running a heavier UTV loaded with gear, or towing a trailer through mud, size up to the 5,000 or 5,500 lb. class.

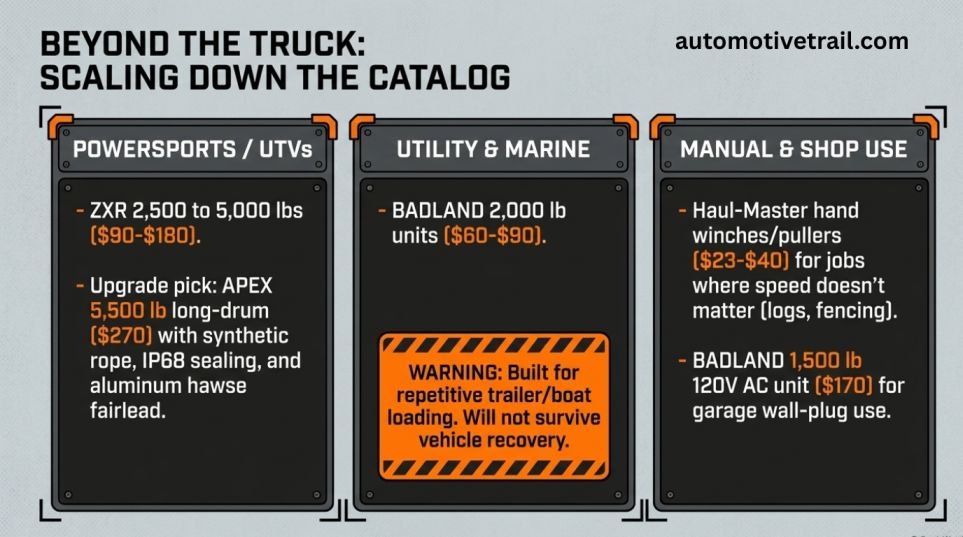

Utility, trailer, and marine winches: the smaller jobs

Not every winch job involves a truck bumper. Harbor Freight covers three smaller use cases:

• BADLAND 2,000 lb. Utility Trailer Winch with steel rope, $59.99 (often $48.99). Built for loading equipment onto a utility trailer, not vehicle recovery.
• BADLAND 2,000 lb. Marine Electric Winch, $89.99. Rated for boat trailer loading and general marine winching, sealed against water exposure.
• BADLAND 12,000 lb. Winch Hitch Mount, $79.99, in-store only. Lets you move a 12,000 lb. class winch between vehicles using a standard 2-inch receiver instead of a permanent bumper install.

These aren’t recovery winches in the off-road sense. They’re built for lighter, repetitive tasks: pulling a jet ski onto a trailer, winching a mower up a ramp, loading a boat. Don’t buy a 2,000 lb. utility winch expecting it to pull a stuck truck out of mud. It won’t survive the load.

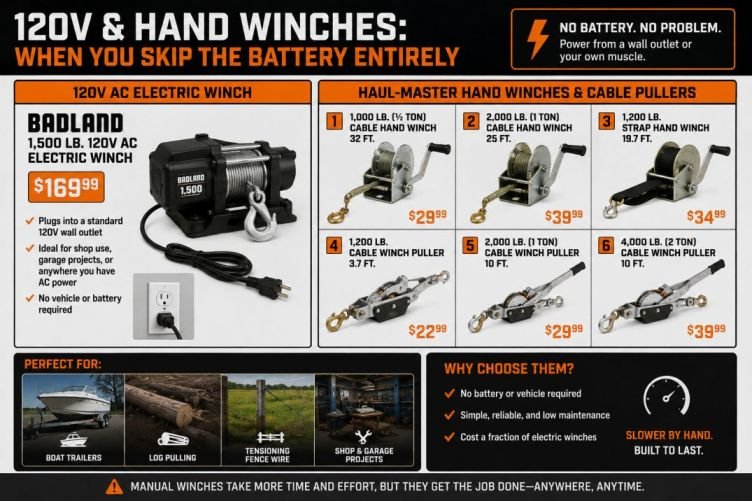

120V and hand winches: when you skip the battery entirely

Two categories cover jobs where running off a vehicle battery isn’t practical.

The BADLAND 1,500 lb. 120V AC Electric Winch ($169.99) plugs into a standard outlet. It’s built for shop use, garage projects, or anywhere you have wall power but no vehicle nearby.

Haul-Master’s hand winches and cable pullers cover everything else:

1. 1,000 lb. (½ ton) cable hand winch, 32 ft. — $29.99
2. 2,000 lb. (1 ton) cable hand winch, 25 ft. — $39.99
3. 1,200 lb. strap hand winch, 19.7 ft. — $34.99
4. 1,200 lb. cable winch puller, 3.7 ft. — $22.99
5. 2,000 lb. (1 ton) cable winch puller, 10 ft. — $29.99
6. 4,000 lb. (2-ton) cable winch puller, 10 ft. — $39.99

These require manual cranking, so they’re slow. But they don’t need a battery, don’t wear out a motor, and cost a fraction of the electric options. They’re the right call for boat trailers, log pulling, tensioning fence wire, or any job where speed doesn’t matter, and simplicity does.

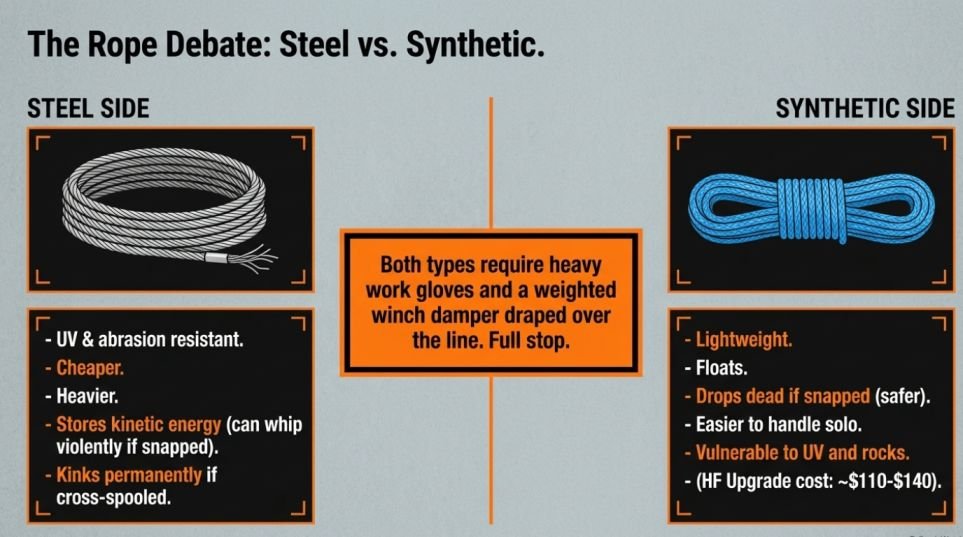

Steel rope vs synthetic rope: which one for your setup

Every Harbor Freight electric winch ships with either steel wire rope or synthetic rope, and you can swap between them since the drums are compatible.

Steel wire rope holds up better against sunlight and abrasion. It’s also heavier, which matters if you’re winching solo and dragging cable across rocky terrain by hand. Steel can kink permanently if it’s spooled wrong or crossed under load, and a damaged strand turns into a safety hazard fast.

Synthetic rope weighs a fraction of steel for the same length and rating. It floats, it doesn’t store energy the way steel does if it snaps (steel can whip back violently; synthetic tends to drop), and it’s easier to handle by hand. It’s more vulnerable to UV degradation and abrasion over rocks, so you inspect it more often.

Both rope types require gloves and a winch damper (a weighted blanket draped over the line) during use, full stop. If you’re buying separately, Harbor Freight sells a 3/8 in. x 80 ft. synthetic rope rated to 12,000 lb. for $139.99 (often $109.99 on deal), which fits their higher-capacity truck winches.

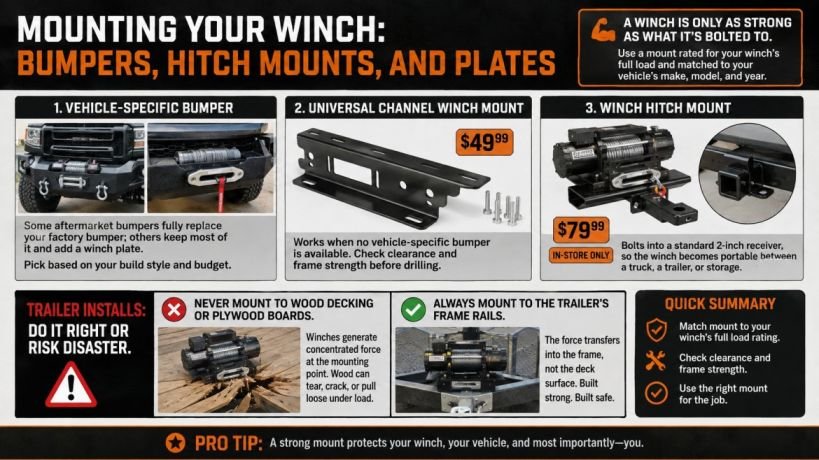

Mounting your winch: bumpers, hitch mounts, and plates

A winch is only as strong as what it’s bolted to. You need a mount rated for your winch’s full load, matched to your vehicle’s make, model, and year.

Three mounting paths exist:

• Vehicle-specific bumper. Some aftermarket bumpers fully replace your factory bumper; others keep most of it and add a winch plate. Pick based on your build style and budget.
• Universal channel winch mount ($49.99). Works when no vehicle-specific bumper is available, but check clearance and frame strength before drilling.
• Winch hitch mount ($79.99, in-store only). Bolts into a standard 2-inch receiver, so the winch becomes portable between a truck, a trailer, or storage.

For trailer installs specifically: never mount a winch to wood decking or plywood boards. Winches generate concentrated force at the mounting point, and that force has to transfer into the trailer’s actual frame rails, not the deck surface. If you skip this, you risk tearing the mount loose under load, which turns a recovery job into a safety incident.

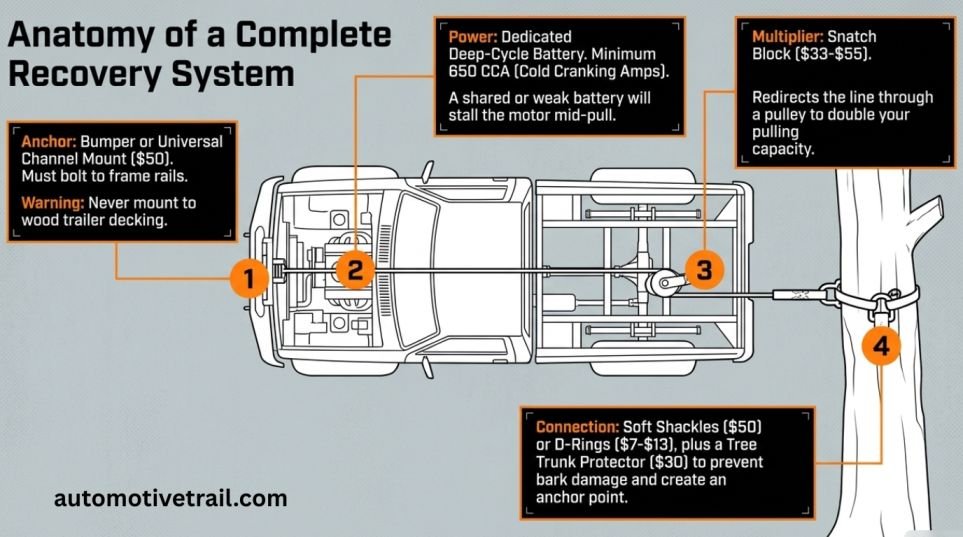

Power and wiring: battery, remote, and amperage needs

Electric winches pull serious current, especially under load. Connect to a dedicated deep-cycle battery rated at least 650 CCA (cold cranking amps), using the power cables included with the winch. A weak or shared battery will drop voltage fast and can stall the motor mid-pull.

Wired ZXR models use a dash-mounted switch on a cable, so you’re tethered close to the vehicle. APEX models include a wireless remote standard, letting you operate from anywhere within range, which matters if you’re guiding the hook and running the winch solo.

If you buy a ZXR and later want wireless control, Harbor Freight sells standalone remotes: a standard wireless winch remote for $39.99, or the APEX wireless remote for $59.99 (often $49.99). Check compatibility with your specific model before buying, since not every remote pairs with every winch controller.

Accessories that actually matter

Skip the accessory aisle overwhelm. Here’s what actually gets used:

• Snatch block ($32.99, often $24.99) or APEX forged snatch block ($54.99): doubles your pulling capacity by redirecting the line through a pulley, useful when your winch is underrated for the job.
• Soft shackle ($49.99, in-store only) and D-ring shackles ($6.99-$12.99): connect the rope or cable to your recovery point. Soft shackles are lighter and safer if they fail under load.
• Tree trunk protector strap ($29.99): wraps a tree without damaging bark, gives you an anchor point when there’s no other vehicle around.
• Recovery straps: 6,000 lb. capacity ($15.99, in-store only) or 9,000 lb. capacity ($27.99), for towing rather than winching.
• Kinetic recovery rope ($119.99): 29,000 lb. breaking strength, stores energy for a snatch-style recovery, different tool from a winch entirely.

Buy the snatch block and a shackle set with your first winch. Everything else, add as the specific job demands it.

Pricing and Inside Track Club deals

Harbor Freight runs member-only pricing constantly, and the discounts on winches specifically tend to run 15-40% off list. Recent examples: the ZXR 2,500 lb. ATV winch drops from $89.99 to $69.99, the APEX 5,500 lb. short-drum drops from $249.99 to $209.99, and the utility trailer winch drops from $59.99 to $48.99.

Inside Track Club membership is free to join. Before checking out on any Badland winch, search for a current coupon or member deal on that exact SKU. Harbor Freight also runs seasonal promotions, including multi-day “deals” events where winches get featured discounts on specific calendar days.

If you’re not in a rush, watching for a sale on a 12,000 lb. APEX unit can save you $100 or more compared to buying it full price the day you need it.

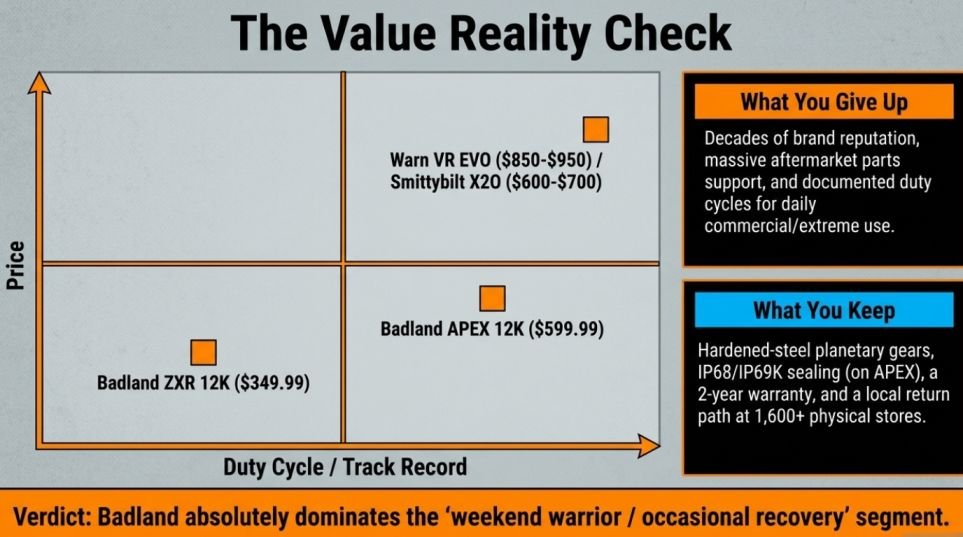

Harbor Freight vs Warn and Smittybilt: Is the price gap worth it

A Warn VR EVO 12-S runs roughly $850-950. A Smittybilt X2O 12K sits around $600-700. The Badland APEX 12,000 lb. costs $599.99. That’s a real gap, not a marketing gimmick.

What you give up: brand reputation built over decades, wider aftermarket support for replacement parts, and in some cases a documented duty cycle rating that Harbor Freight doesn’t publish as clearly. Warn and Smittybilt also tend to have deeper community track records for extreme, repeated off-road use.

What you keep: a winch that’s IP68/IP69K rated on the APEX line, hardened-steel planetary gears, a two-year warranty through Harbor Freight, and a local return path at over 1,600 stores if something fails early.

For weekend wheeling, occasional recovery, and utility trailer work, the Badland lineup covers the job. For a rig that sees daily commercial use or extreme repeated pulls, the name-brand winches have a longer track record backing them up.

What real owners say: reliability and common complaints

Owner feedback on the 12,000 lb. wire-rope ZXR skews positive for the price point. One buyer mounted it on a Land Cruiser 100 Series and reported it pulled them out of multiple rock-crawling recoveries without issue. Another used it to pull a stuck bulldozer out of dirt and called it “very powerful,” going on to also buy a smaller 3,500 lb. unit for a second vehicle.

Common praise points: smooth operation, easy installation without needing a full winch bumper (several buyers pair it with the hitch-mount tray instead), and solid performance mounted on car trailers for equipment loading.

Common complaints, where they show up: initial hesitation about build quality that mostly resolves after use, and the usual caveat that steel rope needs more careful spooling than synthetic to avoid kinks. No widespread failure pattern shows up across the reviews for the core truck/SUV lineup.

Summary: Which Harbor Freight winch to buy

Match capacity to vehicle weight first, at roughly 1.5x your gross weight for real-world recovery margin. For most trucks and SUVs, that’s the ZXR 9,500 lb. ($329.99) or 12,000 lb. ($349.99) if you drive something heavier or tow.

Want wireless control and better sealing? Step up to APEX at $599.99, still cheaper than most name-brand equivalents in the same class.

For UTVs, the ZXR 3,500-5,000 lb. range covers stock machines, and the APEX 5,500 lb. long-drum is the upgrade pick if you want synthetic rope and an IP68 sealing standard.

Skip electric entirely for trailer loading, boat winching, or shop use where a hand winch or the 120V AC unit gets the job done for under $170.

Whatever you buy, budget for a snatch block, a shackle, and a mount rated for the winch’s full capacity. The winch itself is only half the system.

FAQ

Is Harbor Freight’s Badland winch any good?
For the price, yes. Owner reports on the ZXR and APEX lines describe reliable recoveries in rock crawling, trailer loading, and heavy-equipment pulls. It won’t match a Warn’s decades-long track record, but for occasional to moderate use it holds up.

What size winch do I need for my truck?
Target roughly 1.5x your vehicle’s gross weight in winch capacity. A 5,000-6,000 lb. SUV needs at least a 9,500 lb. winch; a loaded 7,000+ lb. truck should go to 12,000 lb.

Does Harbor Freight sell winch mounting bumpers?
Not vehicle-specific bumpers directly, but they sell a universal channel winch mount, a mounting plate for ATV/UTV, and a hitch-mount tray that works with a standard 2-inch receiver.

What battery do I need to run a Harbor Freight winch?
A dedicated deep-cycle battery rated at least 650 CCA, connected with the power cables included in the box. Running off a weak or shared starting battery risks voltage drop mid-pull.

Can I switch a Harbor Freight winch from wire rope to synthetic rope?
Yes, the drums are compatible. Harbor Freight sells a 3/8 in. x 80 ft. synthetic rope rated to 12,000 lb. as a standalone replacement for $139.99.

Does Harbor Freight ever put winches on sale?
Regularly. Inside Track Club members see discounts of 15-40% on individual winch models and accessories, and Harbor Freight runs seasonal multi-day deal events with featured winch pricing.
